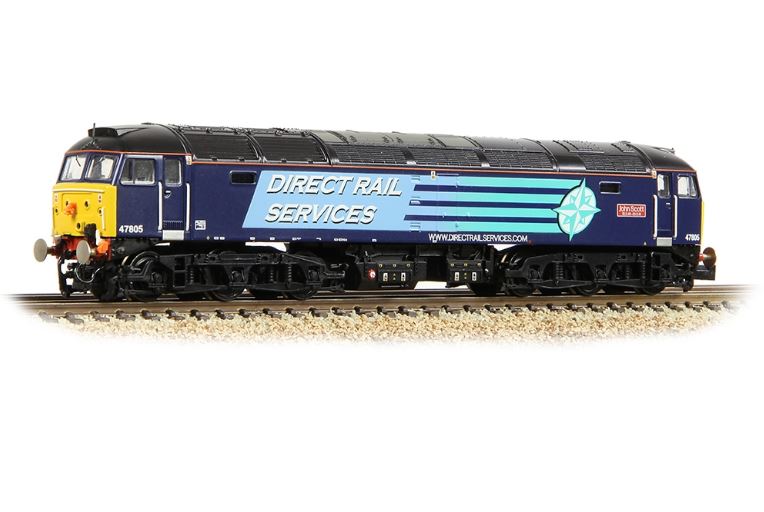

• Graham Farish N Scale
• Era 9
• Pristine DRS Compass (Original) livery
• Running No. 47805
• Named ‘John Scott’

• Equipped with a Next18 DCC Decoder Socket – Recommend Decoder item No. 36-567B
• Length 130mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Plated Headcode Panels with Sealed Beam Marker Lights
• Cut-Cab Locomotive
• Cab-Front-mounted ETH Equipment
• Multiple Operation Jumper Sockets
• Single Arm Windscreen Wipers
• High Intensity Headlight
• Round Buffers
• Checker Plate Kickplate below Cab Door
• Partially Plated Cab Roof Vents
• Serck Radiator Grilles
• Smooth Exhaust Panels
• Plated Roof Boiler Port
• Water Tanks Removed
• Later Extended Range Fuel Tanks
• NRN Aerials
• Plated Bogie-mounted Cab Steps

GRAHAM FARISH CLASS 47 SPECIFICATION

MECHANISM:

• Coreless, twin shaft motor with two flywheels providing drive to both bogies
• All axle drive
• Electrical pickup from eight wheels
• Diecast metal chassis block
• Gearing arranged for prototypical running speeds and haulage capabilities
• 9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing
• Bogie-mounted coupling pockets to NEM355 standards at each end
• Designed to operate on curves of second radius (263.5mm) or greater

DETAILING:

• Bogies constructed from multiple components featuring full relief detail
• Separately applied detail parts, including lamp irons, cab handrails and roof aerial (where applicable)
• Separately fitted battery box/water/fuel tank assembly
• Cab Interior Detailing
• Each model supplied with a full set of model-specific bufferbeam pipework and accessory parts

LIGHTING:

• Directional lighting, switchable on/off at either end on DCC or Analogue control
• Cab lighting, switchable on/off (when used on DCC only)
• Authentic light colours and temperatures selected for each model based on era and application

DCC:

• Next18 DCC decoder interface

SOUND:

• Speaker installed in all models for optimum sound reproduction
• ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Graham Farish Class 47 using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using BR/TOC specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
